TFC-1000S20 | Single Mode SC-Type fiber converter up to 20km - TRENDnet Networking Products
| Average ETA for Additional Units | ||
| Product Datasheet |

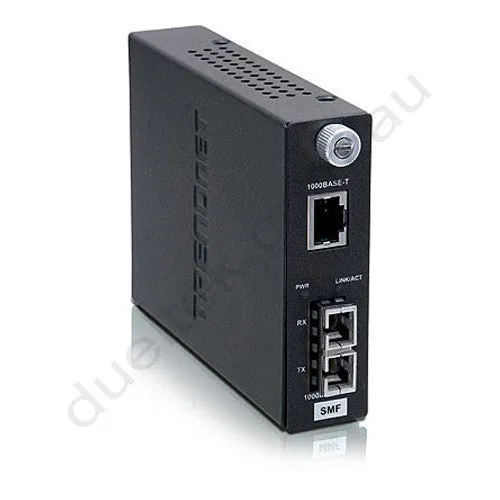

The TFC-1000S20 Intelligent Fibre Converter works with the TFC-1600 chassis system or as a standalone unit.
This converter is a Single Mode SC-Type fibre converter that supports SNMP and spans distances up to 20km (12.4 miles).
Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC-Type) port.
- Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards
- 1 x 1000Base-T RJ-45 port
- 1 x 1000Base-LX single-mode SC type fibre port
- Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
- Support LLCF (Link Loss Carry Forward, Link Pass Through)
- Support LLR (link Loss Return) for Fibre port
- Monitor and configure Ethernet or Fibre's duplex mode, LLR, port on/off and receive link down information via management module TFC-1600MM and chassis TFC-1600
- Status LED indicators for Power and Link/Activity
- Wall mountable
- Optional 19” system chassis with redundant power supply (TFC-1600), holds up to 16 TFC series Media Converters
| Part Number | Product Description |
| TFC-1000S20 | Intelligent Gigabit Single-Mode SC FibreConverter 20KM |
