Name: Rough Country Lift Kit Ford F250 Super Duty 4WD (15-16) 6" Suspension Lift Kits w/ Shock
SKU: 2320060

Product Details ＋

Professional install required on all lift kits for proper setup and safety.

Fitment Information

Ford F250 Super Duty 4WD (2015, 2016)

Note

Does NOT F-350 models.
Does NOT fit dually models.
Does NOT fit gas engine models.

Specs & Features

100% bolt-on installation
Increased ground clearance
Levels the front with the rear of the vehicle
Includes heavy-duty radius arms equipped with durable Clevite Rubber Bushings for maximum vibration absorption.
New radius arms help maintain factory angles.
Includes adjustable alignment cam at the axle to allow caster adjustment
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
N3 Shocks:

10-Stage Variable Valving
High Pressure Nitrogen Charged
35mm Piston
Chromed Hardened 18mm Piston Rod
36kN Tensile Strength
Spring Loaded Piston Rod Seal
Metallic Silver Paint
Silver powder coat finish

V2 Monotube:

Monotube design
Internal floating piston
Nitrogen-charged
46mm high-flow piston
Fast heat dissipation
36kN Tensile Strength
Mounts inverted
T6061 brushed aluminum body

Vertex Shocks:

8-Stage Adjustable Damping
Monotube Design
Nitrogen-charged
Massive 2.5in Piston
22mm Chrome-Hardened Piston Rod
3-Stage Seal System
Heat-Treated, Alloy Bearing
Honed Steel Body

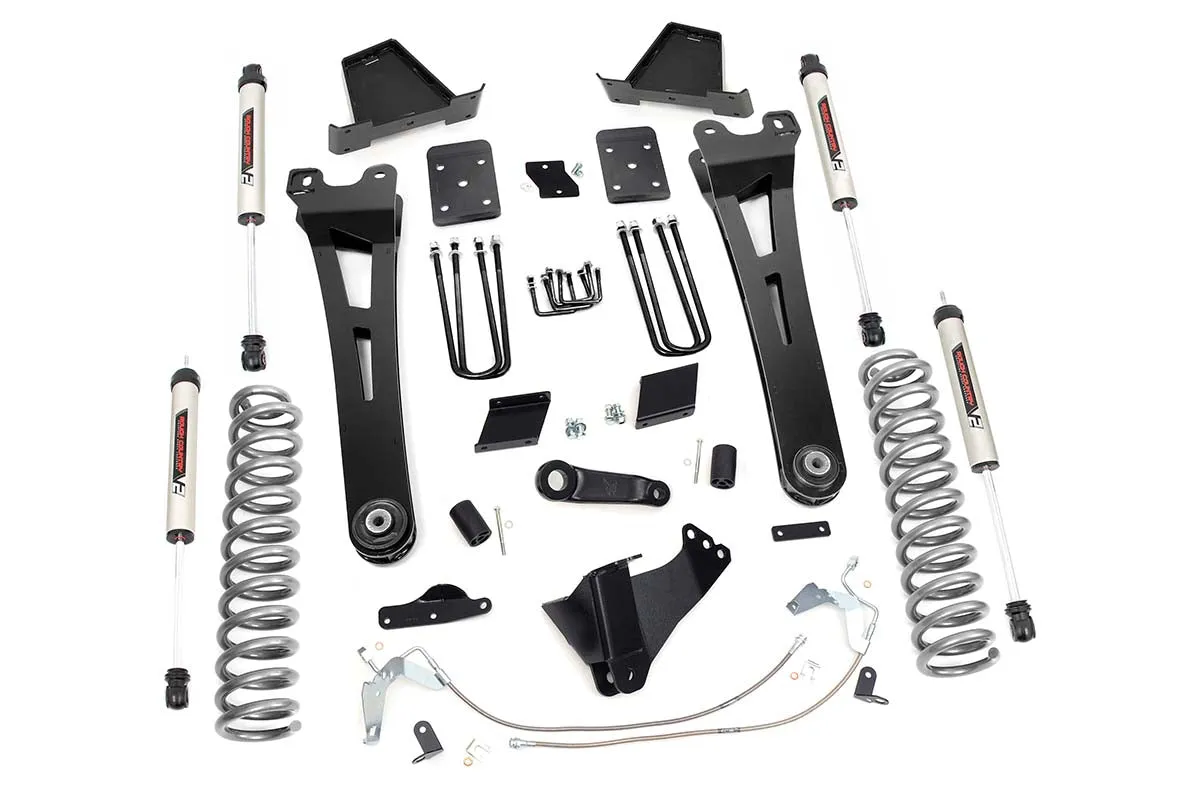

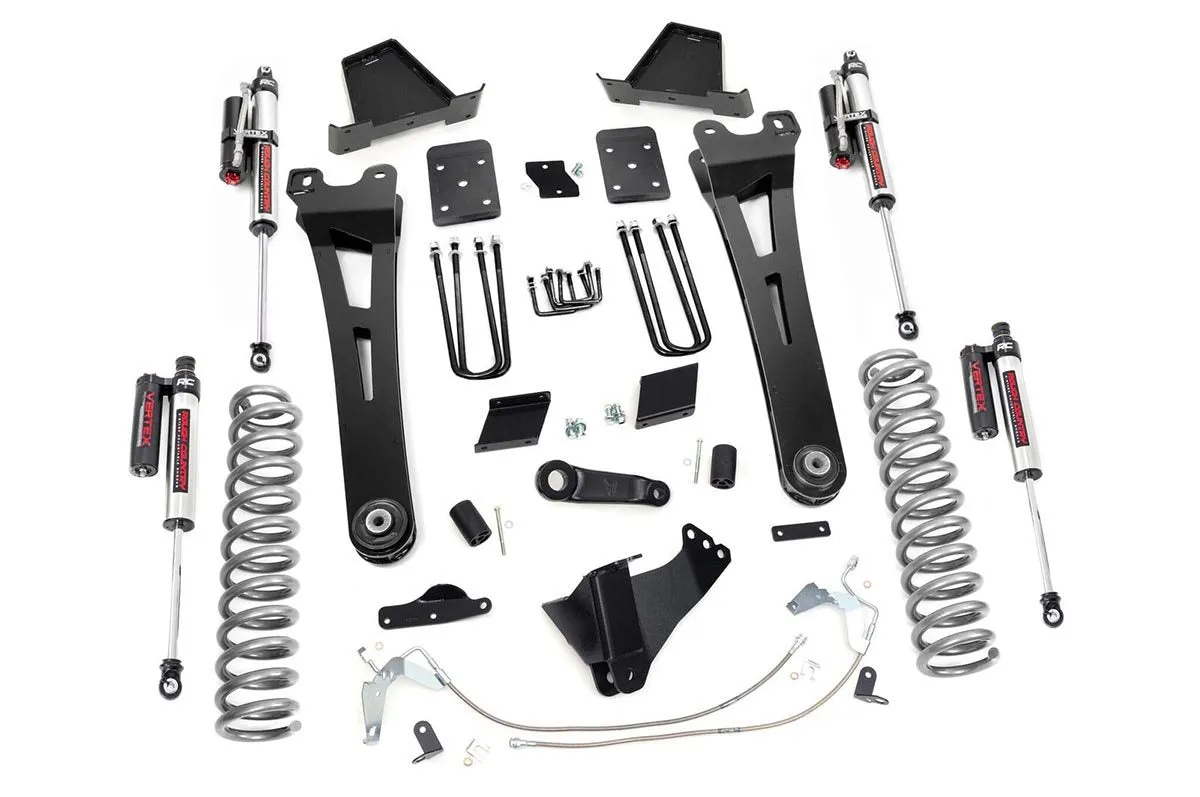

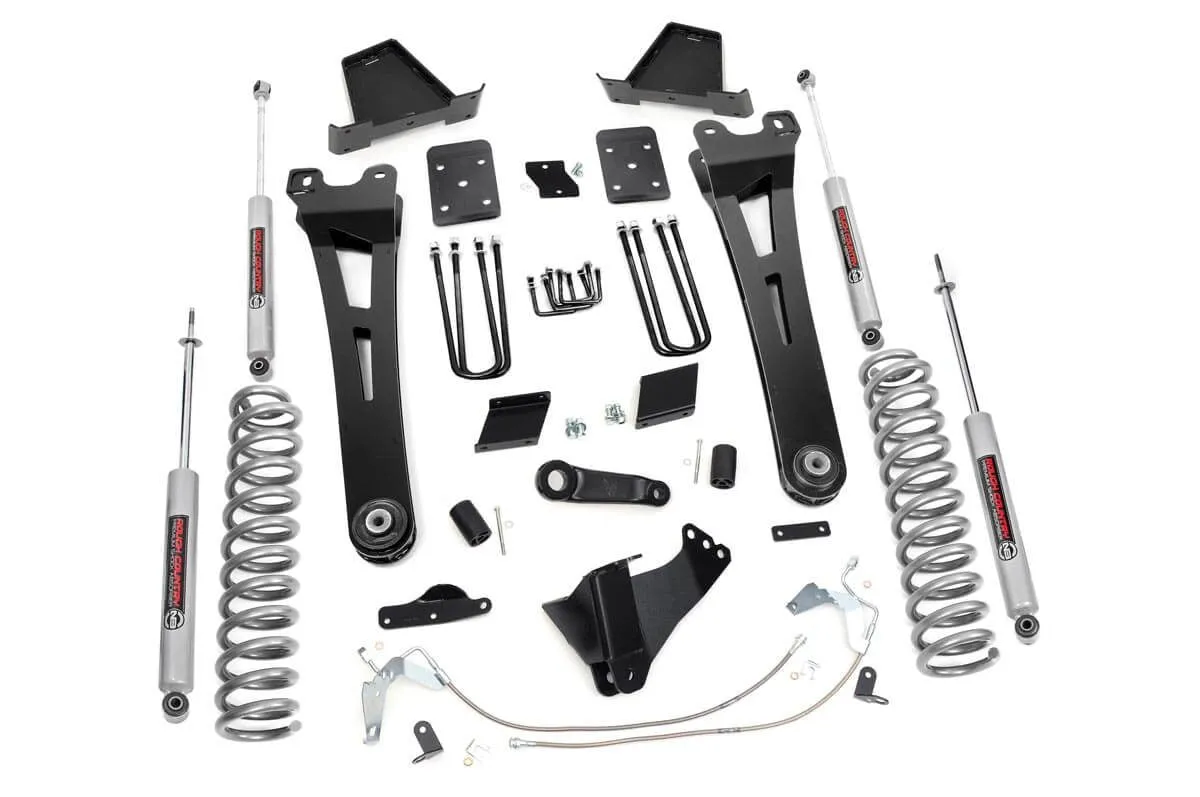

In the Box

Front

Lifted coil springs
Radius arms
Sway-bar drop brackets
Track bar drop bracket
Stabilizer relocation bracket
Pitman arm
Stainless steel brake lines
Brake line brackets
Bumpstop spacers
Hardware

Rear

Fabricated anti-wrap lift blocks
Brake line bracket
U-bolts
Hardware

Shocks:

(4) Premium N3 series

Product Description

Compliment your 2015-2016 Ford F-250's aggressive, good looks with Rough Country's 6-inch Radius Arm Lift Kit for models without rear factory contact overload springs. Rough Country's 6-inch Lift Kit was engineered to retain the F-250's impressive factory specs while bumping up performance and durability where it's needed most. The result is an aggressive, lifted beast with a mean profile and balanced on and off-road ride quality.

When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's new 6-inch Radius Arm Suspension Lift features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. At 27lbs each, these beefy, upgraded Radius Arms dwarf stock equipment while and feature durable Clevite Rubber Bushings for maximum vibration absorption.

This all-inclusive kit also features an adjustable alignment cam at the axle to allow caster adjustment as well as a track bar relocation bracket and a drop pitman arm. A full set of N3 Shocks provide a truly balanced ride quality for on and off-road use - perfect for daily drivers. This kit also ships with a set of durable, lifted coil springs and brake line relocation brackets.

This innovative kit design features a 100% bolt-on installation process that is lightning fast compared to other kits this size. Save time and money with no need for cutting, drilling, or other complicated procedures.
