Features:

• AC/DC Measurement Capabilities
• DC – 100 MHz, 30 A DC
• Automatic Scaling and Units 2 – Oscilloscope On-Screen Readout of Magnitude and Amps Reduces Measurement Errors with No More Hand Calculations
• AC/DC Input Coupling
• Low Insertion Impedance Reduces Device Under Test Loading
• Split-Core Construction Allows Easy Circuit Connection
• Status Indicators Provide Visual Operating Status and Notification of Potential Error Conditions – Degauss, Probe Open, Overload, Not Terminated into 50 Ohm, Noncompatible Probe Type
• Lower DC Drift and Noise Allows Improved Low-level Current Measurements
• Certified for use in U.S., Canada, and Europe. Complies with applicable IEC standards.

Applications:

• Power Supplies (Switching and Linear)
• Semiconductor Devices (SCRs, IGBTs, MOSFETs, CMOS, BJTs)
• Power Inverters/Converters
• Electronic Ballasts
• Industrial/Consumer Electronics
• Mobile Communications (Phone, Satellite, Relay Stations)
• Motor Drives
• Transportation Systems (Electronic Vehicles, Electric Trains, Locomotives, Avionics)

Specifications:

• 100 MHz
• 30 A

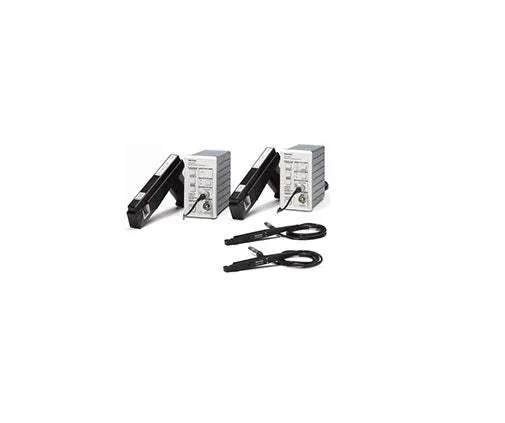

The TCP312 is a 100 MHz, 30 A current probe from Tektronix.
