Features:

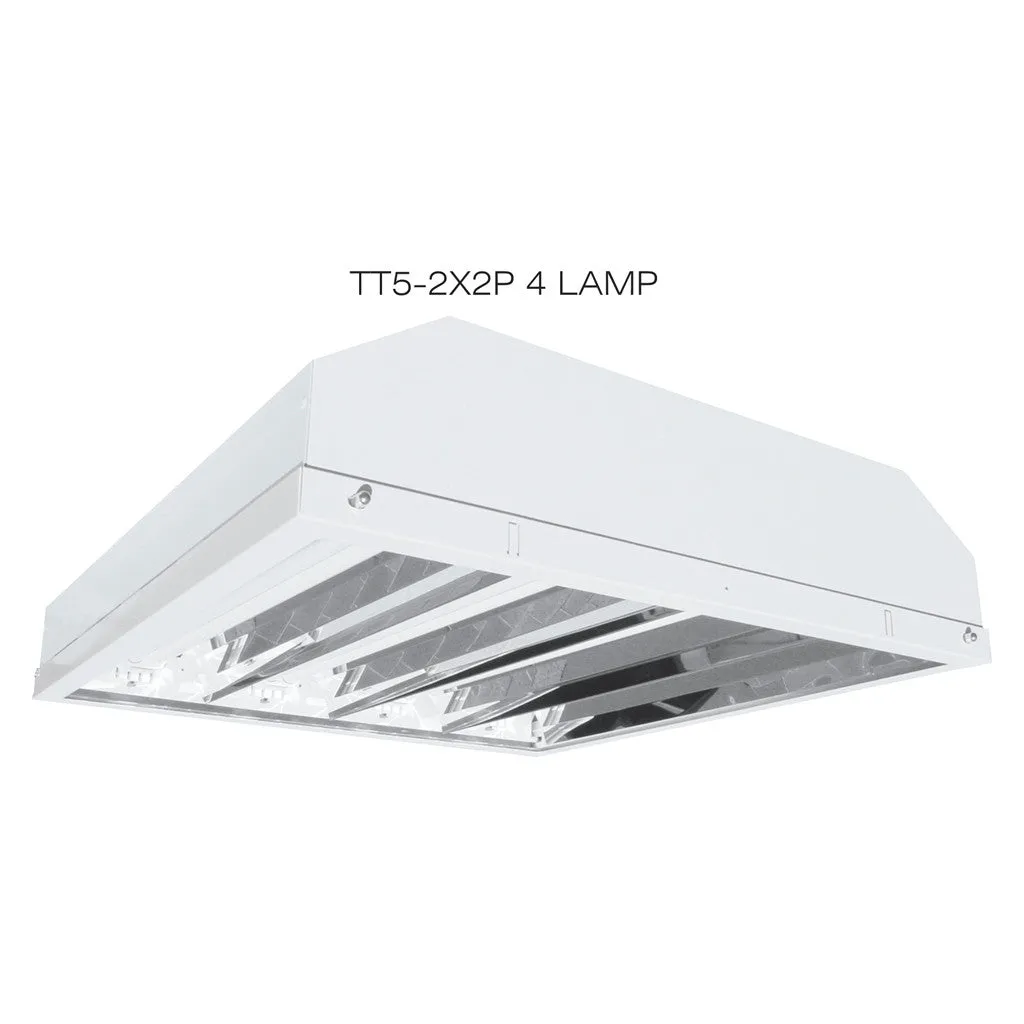

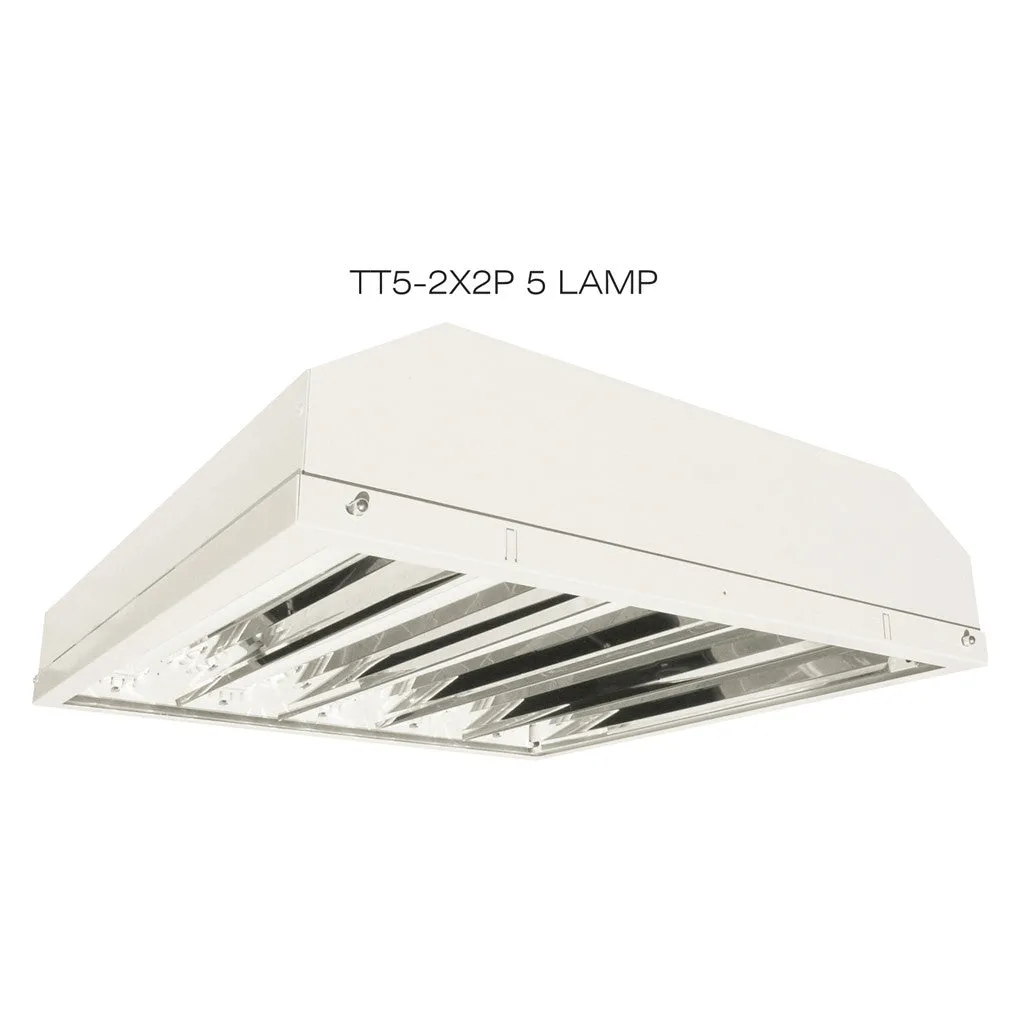

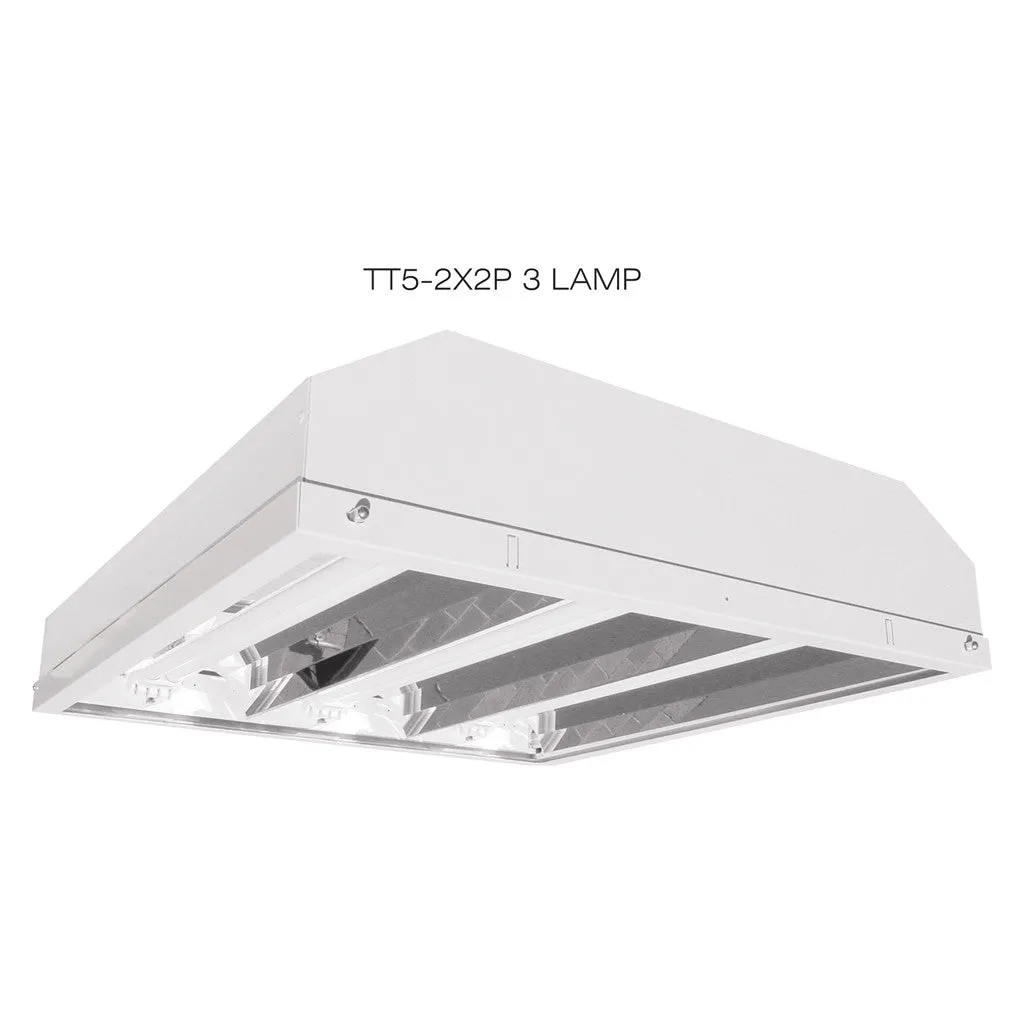

• The TT5-2X2P is available in 3, 4 and 5 lamp configurations
• Code Gauge steel body with post powdercoating standard. Properly vented housing keeps ballast cool. Cold storage housing without venting available on request
• Standard white ballast cover is 90% reflective. Optional specular Miro4® & white reflectors available. Narrow and wide distribution offered

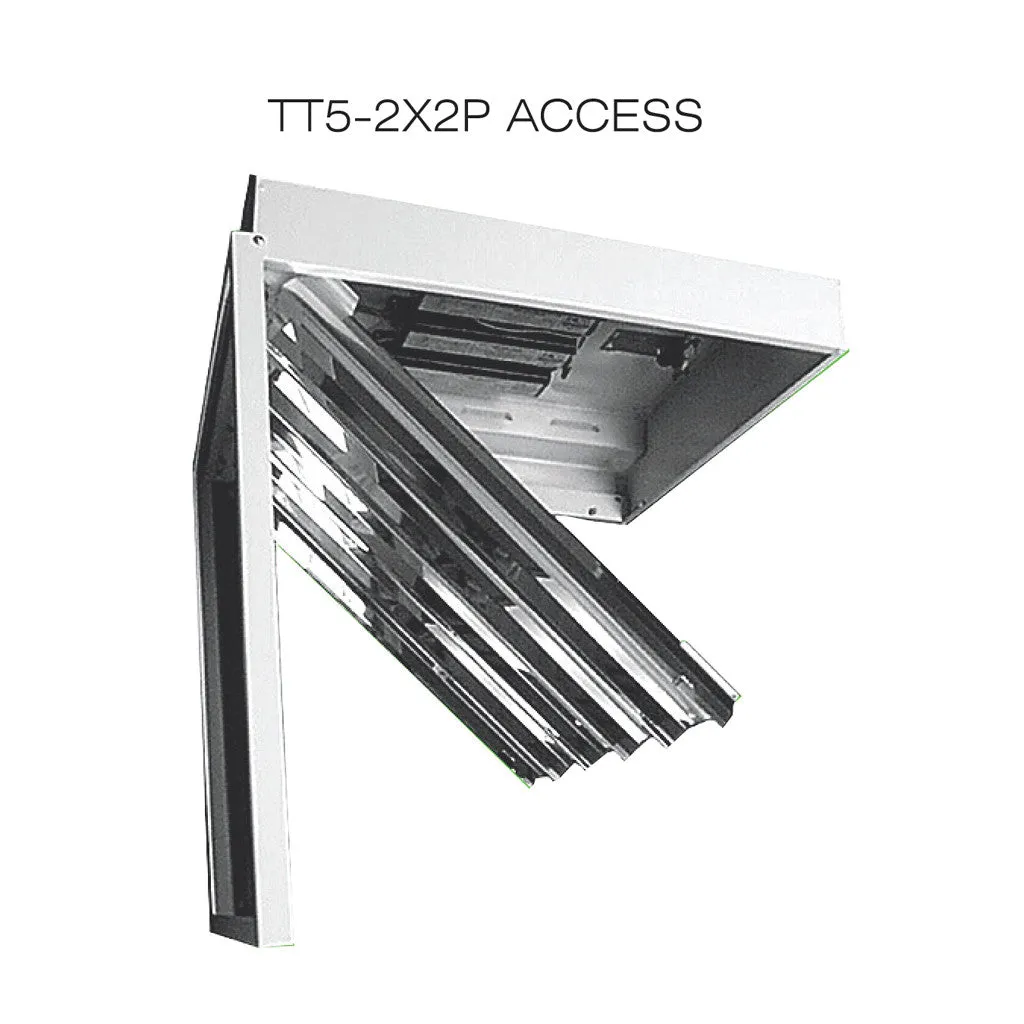

• AEI's industry leading Tool-Less Maintenance Push-Button Access Advantage gives access to all internal components in seconds without the use of tools and removal of lamps
• Wired per specified voltage using electronic ballast rated for 75°Celsius (C). 90° Celsius ballast rating available for high ambient applications
• T5HO Twin-Tube has over 50% energy savings compared to HID and old fluorescent systems
• T5HO Twin-Tube has a longer life with 25,000hrs @ 3hrs/start and 35,000hrs @ 12hrs/start
• 95% Lumen Maintenance For T5HO TT compared to Metal Halide that depreciates 40-60%
• T5HO TT ballast technology eliminates flicker and provides instant on and instant restrike while maintaining light levels during dips and peaks
• T5HO TT lamps are 80CRI or greater, providing excellent color qualifty over the life of the lamp, thus enhancing visual comfort
• Auto On/Off occupancy sensors are factory installed and paired with Programmed Start ballasts for energy savings and extended life

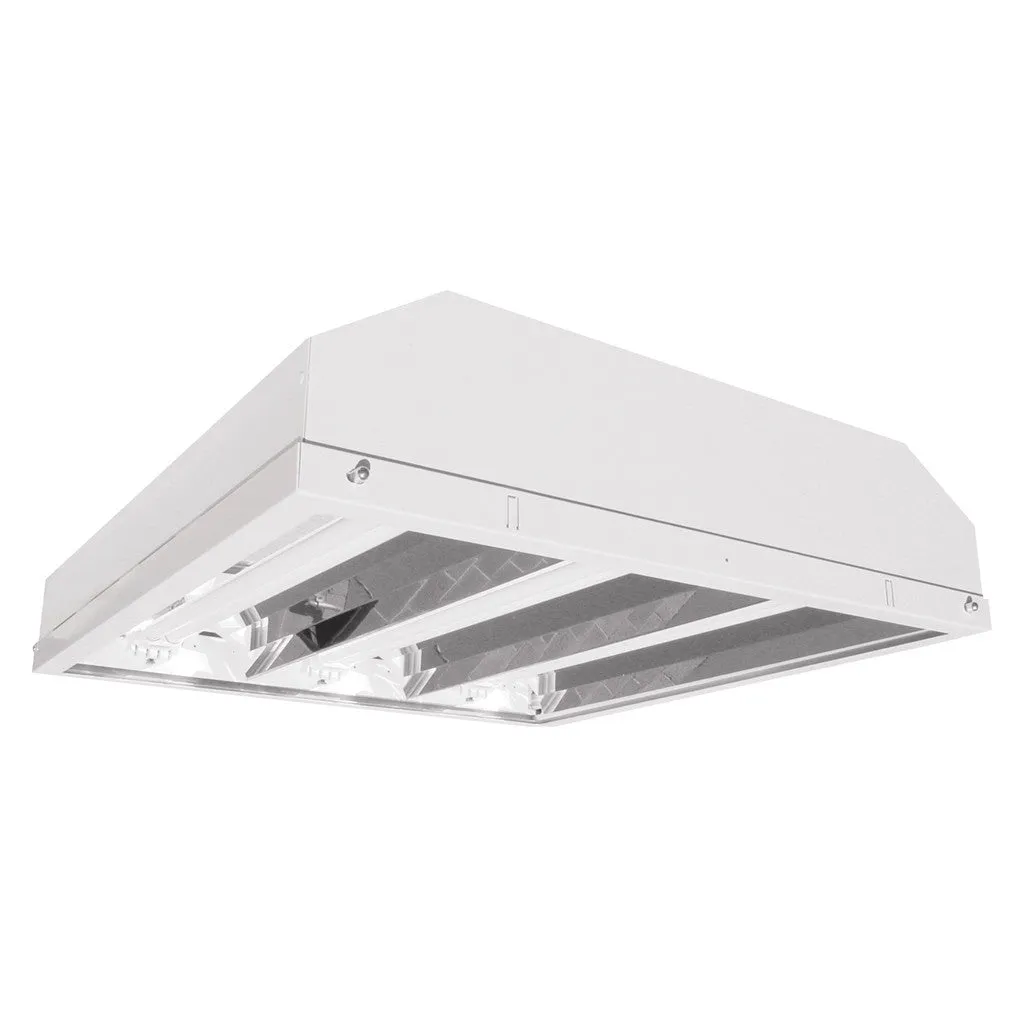

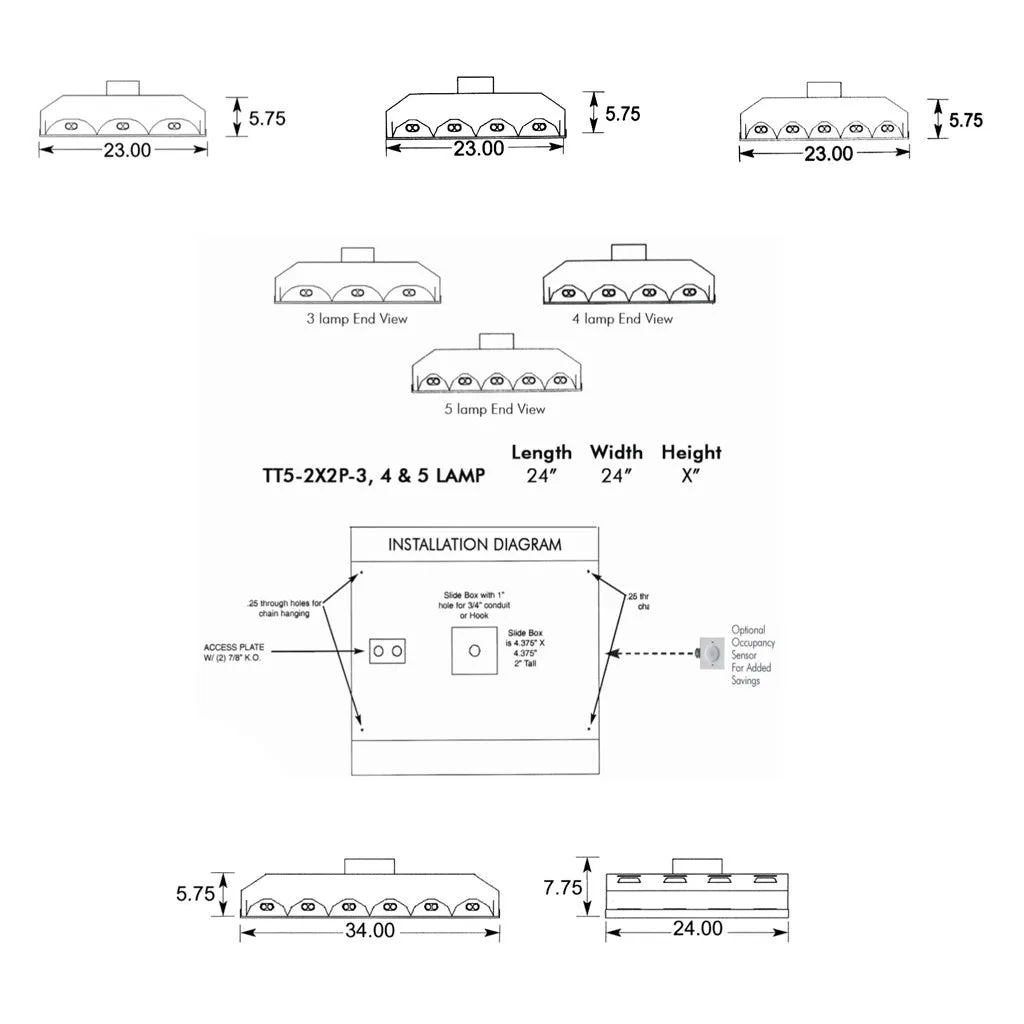

• The TT5-2X2P fixture is designed to be pendant mounted
• UL Listed for Damp Locations

Applications:

• Manufacturing facilities
• Distribution and warehouse centers
• Processing and production plants
• All High Bay & Aisle Applications
