Professional install required on all lift kits for proper setup and safety.
Fitment Information
- Ford F250 Super Duty 4WD (2011, 2012, 2013, 2014)
Note
- Does NOT F-350 models.
- Does NOT fit gas engine models.
- Does NOT fit dually models.
- A carrier bearing drop bracket is needed for trucks equipped with a 2-piece rear driveshaft. (#1197)
Specs & Features
- Easy bolt-on installation
- Increased ground clearance
- Levels the front with the rear of the vehicle
- Radius arm drop brackets allow for properly set caster. Proper caster is crucial to maintaining factory handling and driveability.
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
- Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
- N3 Shocks:
- 10-Stage Variable Valving
- High Pressure Nitrogen Charged
- 35mm Piston
- Chromed Hardened 18mm Piston Rod
- 36kN Tensile Strength
- Spring Loaded Piston Rod Seal
- Metallic Silver Paint
- Silver powder coat finish
- V2 Monotube:
- Monotube design
- Internal floating piston
- Nitrogen-charged
- 46mm high-flow piston
- Fast heat dissipation
- 36kN Tensile Strength
- Mounts inverted
- T6061 brushed aluminum body
- Vertex Shocks:
- 8-Stage Adjustable Damping
- Monotube Design
- Nitrogen-charged
- Massive 2.5in Piston
- 22mm Chrome-Hardened Piston Rod
- 3-Stage Seal System
- Heat-Treated, Alloy Bearing
- Honed Steel Body

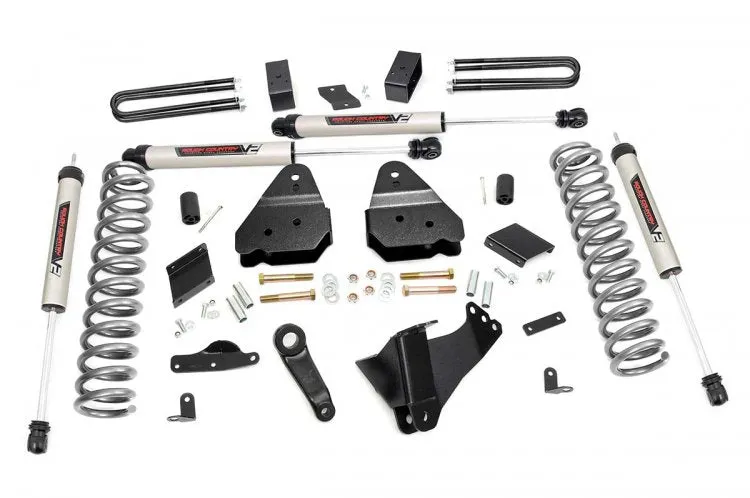

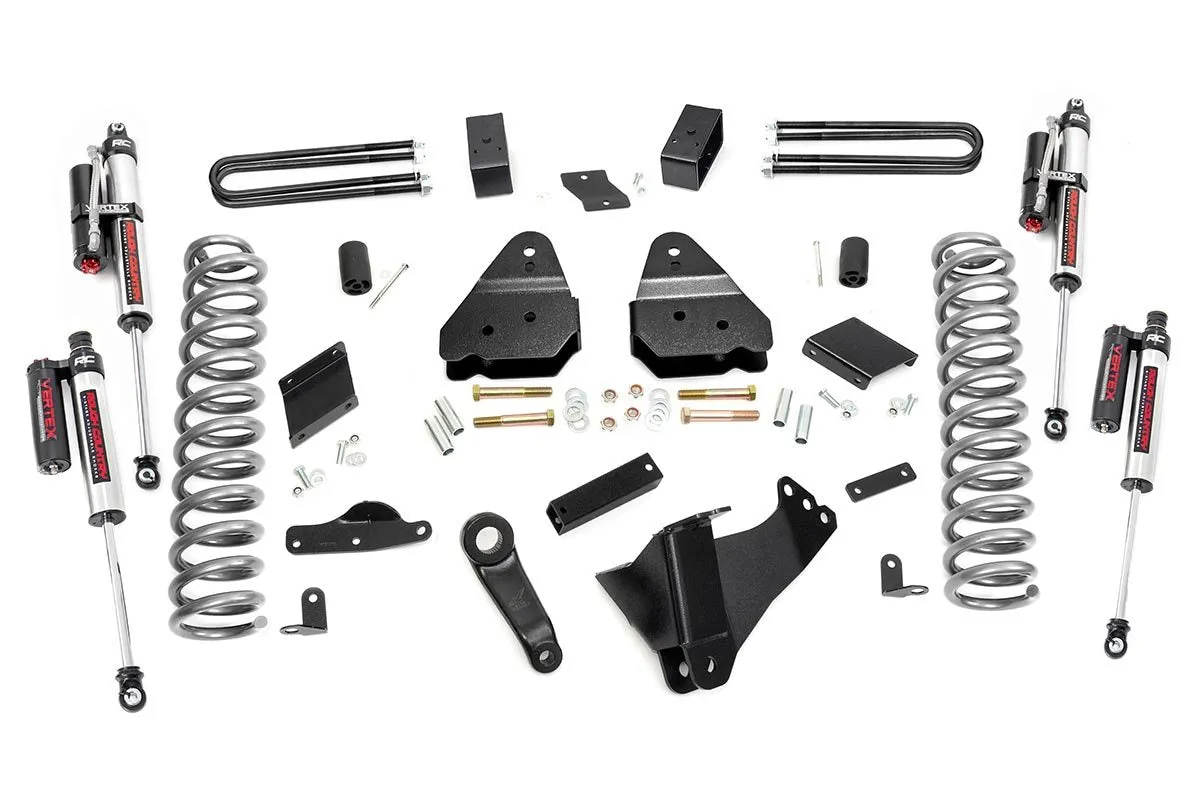

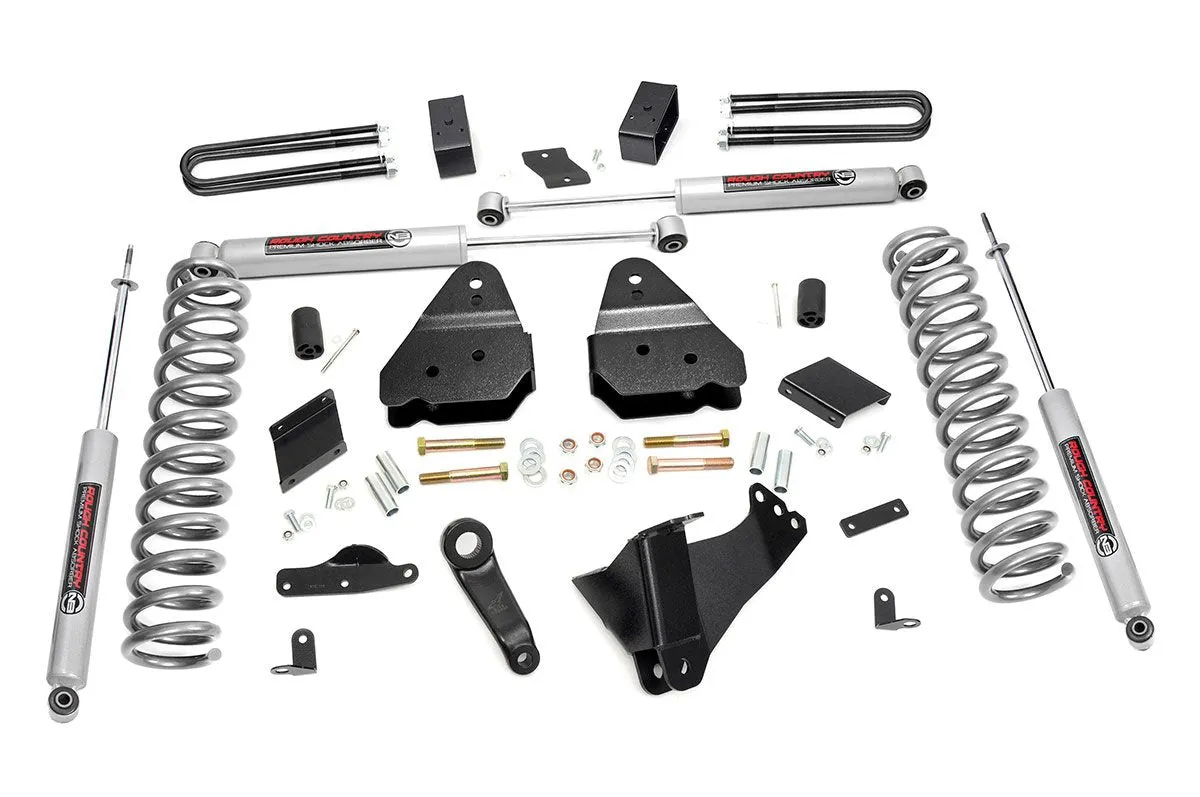

In the Box
- Front
- Lifted coil springs
- Radius arm drop brackets
- Sway-bar drop brackets
- Track bar drop bracket
- Stabilizer relocation brackets
- Pitman arm
- Brake line brackets
- Bumpstop spacers
- Hardware
- Rear
- Fabricated lift blocks
- Brake line brackets
- U-bolts
- Hardware
- Shocks:
- (4) Premium N3 series
Product Description
Give your 11-14 Ford Super Duty an impressive upgrade, front to back with Rough Country’s 4.5" Ford Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance.
This kit features a set of front, lifted coil springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of sway bar drop brackets and track bar are provided to keep everything at optimum angles for a factory-like ride, even after lifting.
A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body.
Get the wheels you want! Rough Country's 4.5" 11-14 Ford Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing.
