Renogy Premium 300 Watt 12 Volt Complete Solar Kit w/ MPPT
This premium solar kit from Renogy means that you'll never have to worry about access to energy on the road again. This kit includes monocrystaline panels or the new 100W Eclipse Solar Panel which is not only sleek in size, weight, and color but are made of the highest efficiency solar cells that Renogy has to offer.

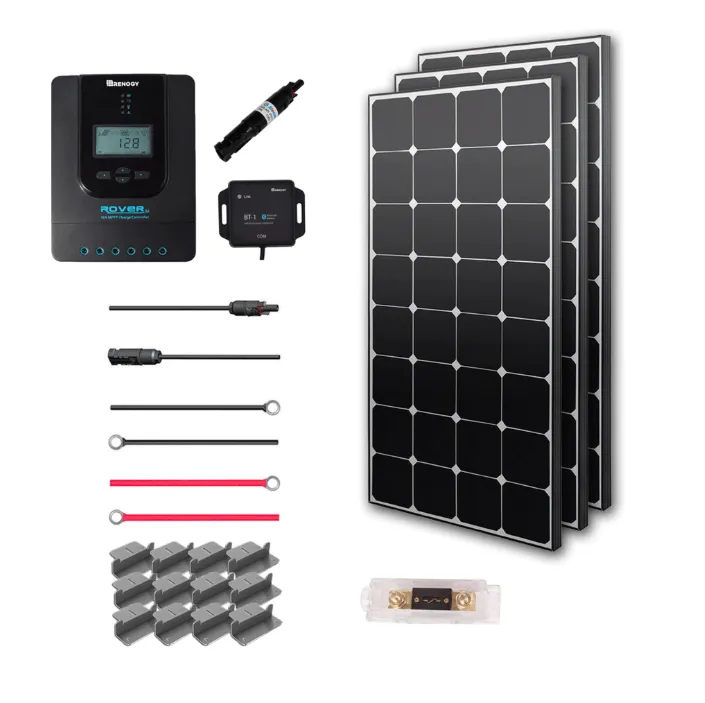

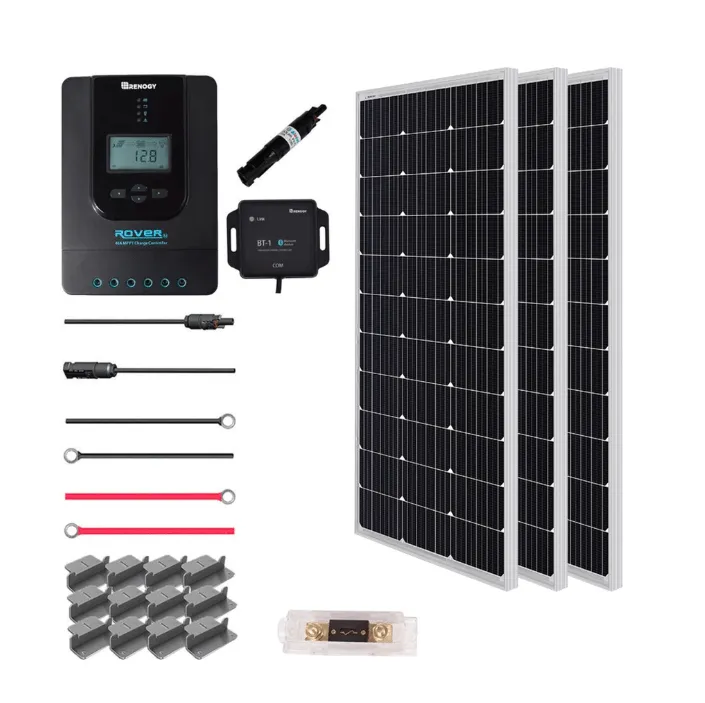

Your Kit Includes:
- (3) x 100 Watt High Efficiency Solar Panels (Either Mono or Eclipse)
- (1) x 40 Amp MPPT Solar Charge Conroller
- (3) x Solar Panel Z-Mounting Bracket Set
- (1) x Charge Controller Bluetooth Module
- 10A MC4 & 40A ANL Fuse
- 8ft 8 AWG Tray Cables
- 2ft 8 AWG Fuse Cables
- 20ft 10AWG Charge Controller Adapter Kit
- 25 Year Output Warranty on Panel
- 5 Year Material and Workmanship Warranty
- 1 Year material warranty for accessories
- Free Shipping
- Lifetime customer support
The included Rover Li 40A MPPT Charge Controller features multiphase synchronous rectification and Maximum Power Point Tracking technologies, which increase charging efficiency. It also comes with the new Bluetooth module is also included which can be paired to the Renogy BT APP. The Renogy BT APP allows you to remotely monitor and change your system from your phone or tablet!
For convenience, this kit also consists of three sets of mounting Z-Brackets, one 20ft 10AWG MC4 Adaptor Kit, one 8ft 8AWG Tray Cable, fusing components for your controller and battery. This Premium Kit is perfect for installation on an RV, boat, or camper. The included Rover 40A MPPT Charge Controller allows for future expansion, leaving your system’s capabilities endless.
KEY FEATURES
Efficient- Monocrystalline panels come with high-efficiency cells Cell efficiency: Eclipse Monocrystalline: 22%, Regular Monocrystalline 21%
- Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments
- Rover charge controller brings peak conversion efficiency of 98%, high Tracking efficiency of 99%
- Extra thick anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
- EL tested solar modules; no hot-spot heating guaranteed
- Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
- TPT back sheet ensures smooth performance over a long period of time
- IP65 rated junction box provides complete protection against environmental particles and low pressure water jets
- 4-Stage battery charging process for a rapid, efficient, and safe battery charging
- RS-232 port compatible for extra features
- Compatible with Renogy Bluetooth Module and Renogy BT APP for remote monitoring
- Pre-drilled holes on the back of the panel allow for fast mounting and securing
- Comes equipped with an MC4 Inline fuse and ANL fuse components for protecting your charge controller and battery

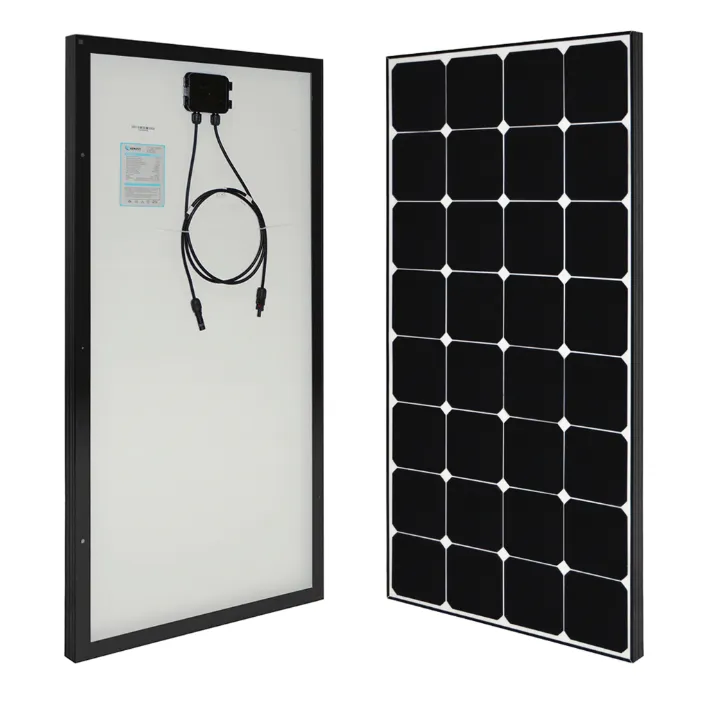

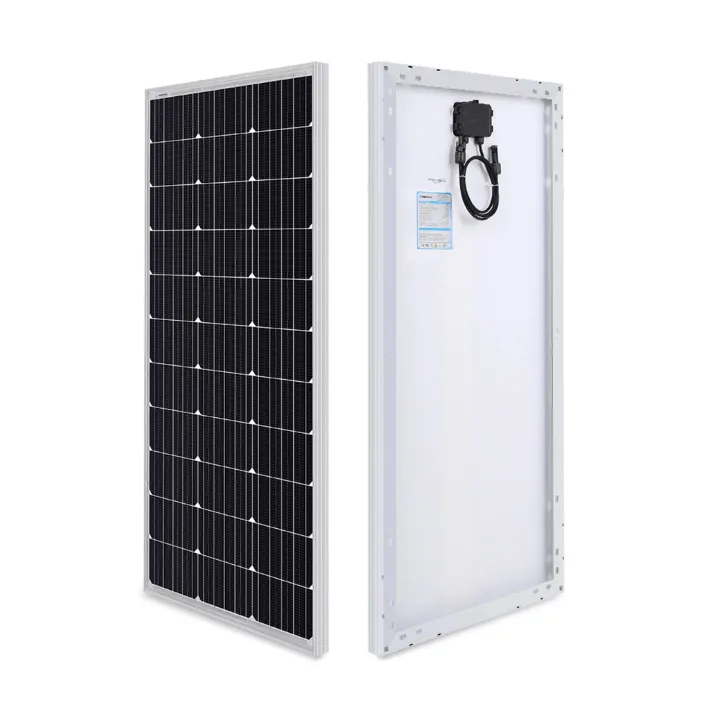

| RENOGY 100W ECLIPSE SOLAR PANEL | RENOGY 100W MONOCRYSTALLINE SOLAR PANEL |
|---|---|
| Maximum Power: 100W | Maximum Power: 100W |
| Maximum System Voltage:600V DC | Maximum System Voltage:600V DC |
| Open-Circuit Voltage (Voc): 21.2V | Open-Circuit Voltage (Voc): 21.6V |
| Short-Circuit Current (Isc): 6.10A | Short-Circuit Current (Isc): 6.24A |
| Optimum Operating Voltage (Vmp): 17.7V | Optimum Operating Voltage (Vmp): 17.9V |
| Optimum Operating Current (Imp): 5.70A | Optimum Operating Current (Imp): 5.72A |
| Weight: 15.0lbs | Weight: 16.5lbs |
| Dimensions: 40.8 X 20.7 X 1.4 inches | Dimensions: 42.2 X 19.6 X 1.38 inches |
| BT-1 BLUETOOTH MODULE | RENOGY 10A MC4 FUSE HOLDER W/FUSE |
|---|---|
| Input Voltage: 5V-12V | Rated Current: 10A |
| Communication Range: ≤15m | Rated Voltage: 1000 V DC |
| Compatibel Models: All Renogy Controllers with RJ12 port | Contact Material: Copper, Silver Plated |
| Operation Temperature: -20℃ to 75℃ (-4 F to 167 F) | Replaceable Fuse: Cylindrical PV Fuse (10x38mm) |
| MOUNTING Z BRACKETS (SET) | RENOGY 8FT 8AWG TRAY CABLES (A PAIR) |
|---|---|
| Eight Long Cap Bolts and Four Short Bolts | Rating Voltage: 600/1000V |
| Four Spring Washers and Four Washers | Length: 8ft |
| Four Z Shape Solar Panel Brackets | AWG: 8 |
| Four Nuts | Temperature: -40°F to 185°F |
| 2FT 8AWG ANL FUSE CABLE | ANL 40A FUSE SET |
|---|---|
| Length: 2ft | Current Rating: 40A |
| Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV | Voltage Rating: 72V |
| Temperature: -40°F to 194°F | Interrupt Capacity: 240A (48V) |

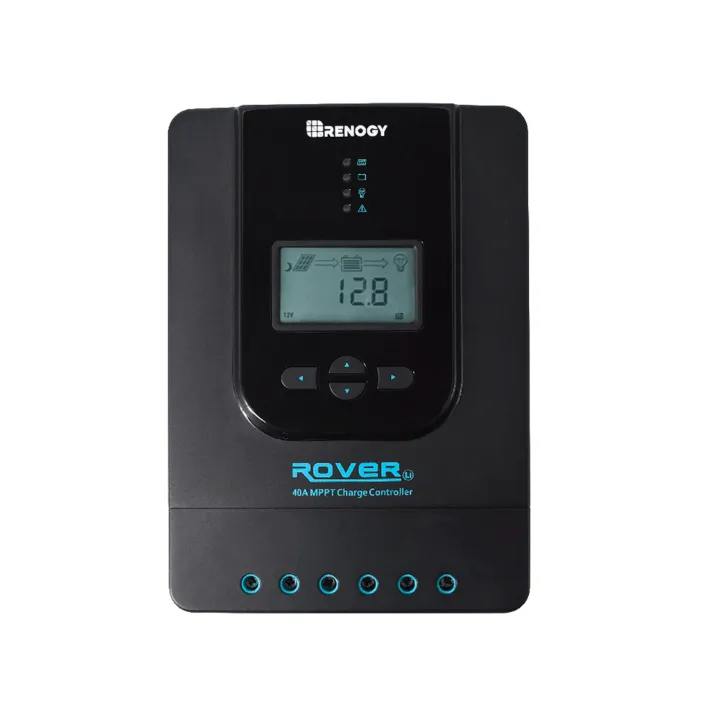

| ROVER LI 40A MPPT CHARGE CONTROLLER | RENOGY 20FT 10AWG MC4 ADAPTOR KIT (A PAIR) |
|---|---|
| Nominal System Voltage: 12V/24V Auto Recognition | Length: 20ft |
| Rated Battery Current: 40A | AWG: 10 |
| Rated Load Current: 40A | Rating Voltage: 600/1000V |
| Max. Solar Input Voltage: 150V DC | Temperature: -40°F to 185°F |
| Max. Solar Input Power: 520W (12V), 1040W (24V) |
WARRANTY INFORMATION
| Panels |
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
