Product Details
＋

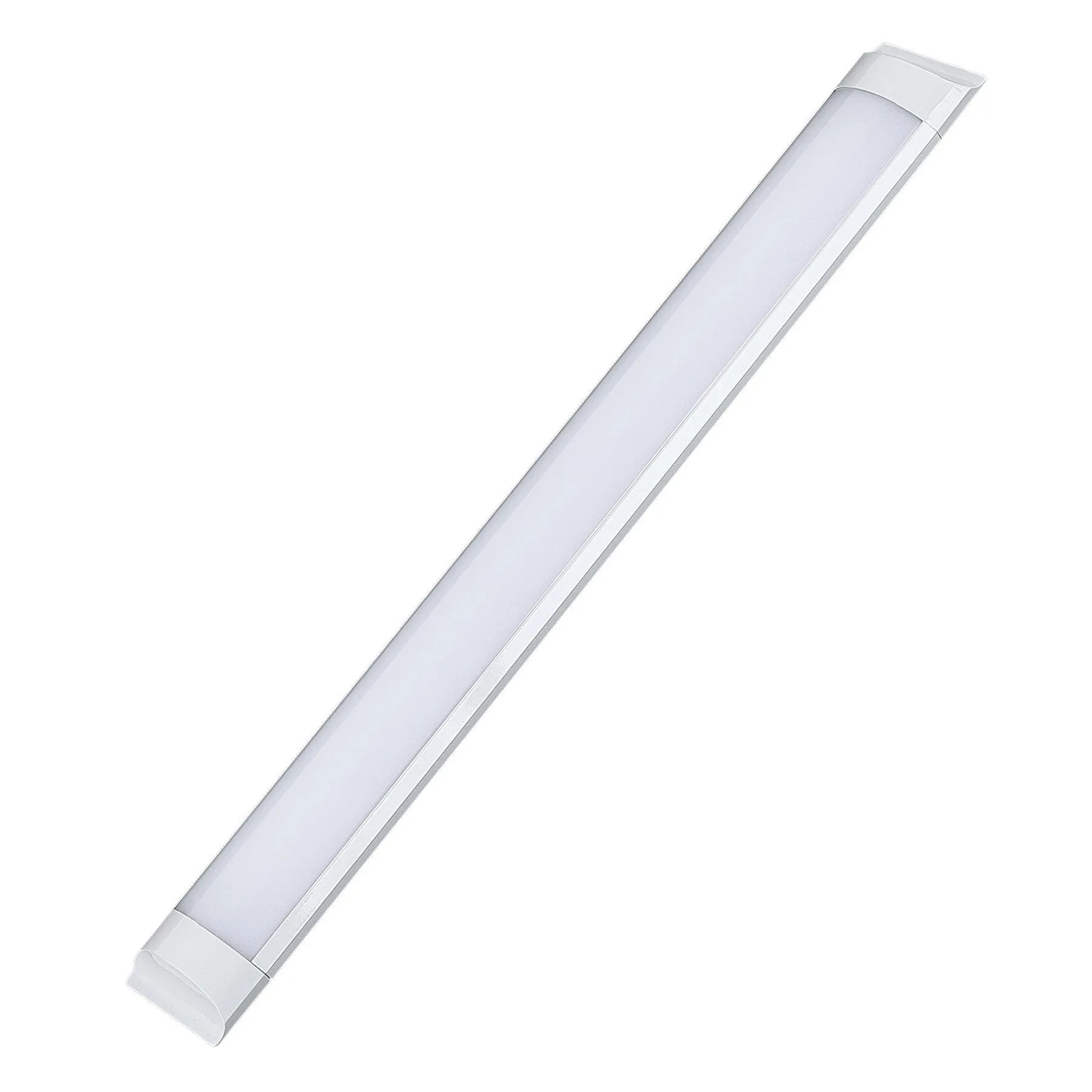

RAZORDM: Interior Surface Mounted LED Dimmable Tri-CCT Battens
Features:
- Interior surface mounted LED dimmable Tri-CCT battens
- Input voltage range: 220-240V AC 50/60Hz
- Constant current inbuilt driver included
- Housing: powder coated aluminium
- Diffuser: PC
- Heat sink: aluminium
- Central hole in mounting plate
- CCT changeable: 3000K/ 4000K/ 5000K, switch on the fitting
- LED chips: SMD2835
- Power factor: ≥0.9
- Ambient temperature: -20 to 40°C
- Suitable for dimming
- Suitable for 2-way switching
- Suitable for use with 3 wire motion or Microwave sensors
- IP rating: IP20
- Warranty: 3 year replacement warranty

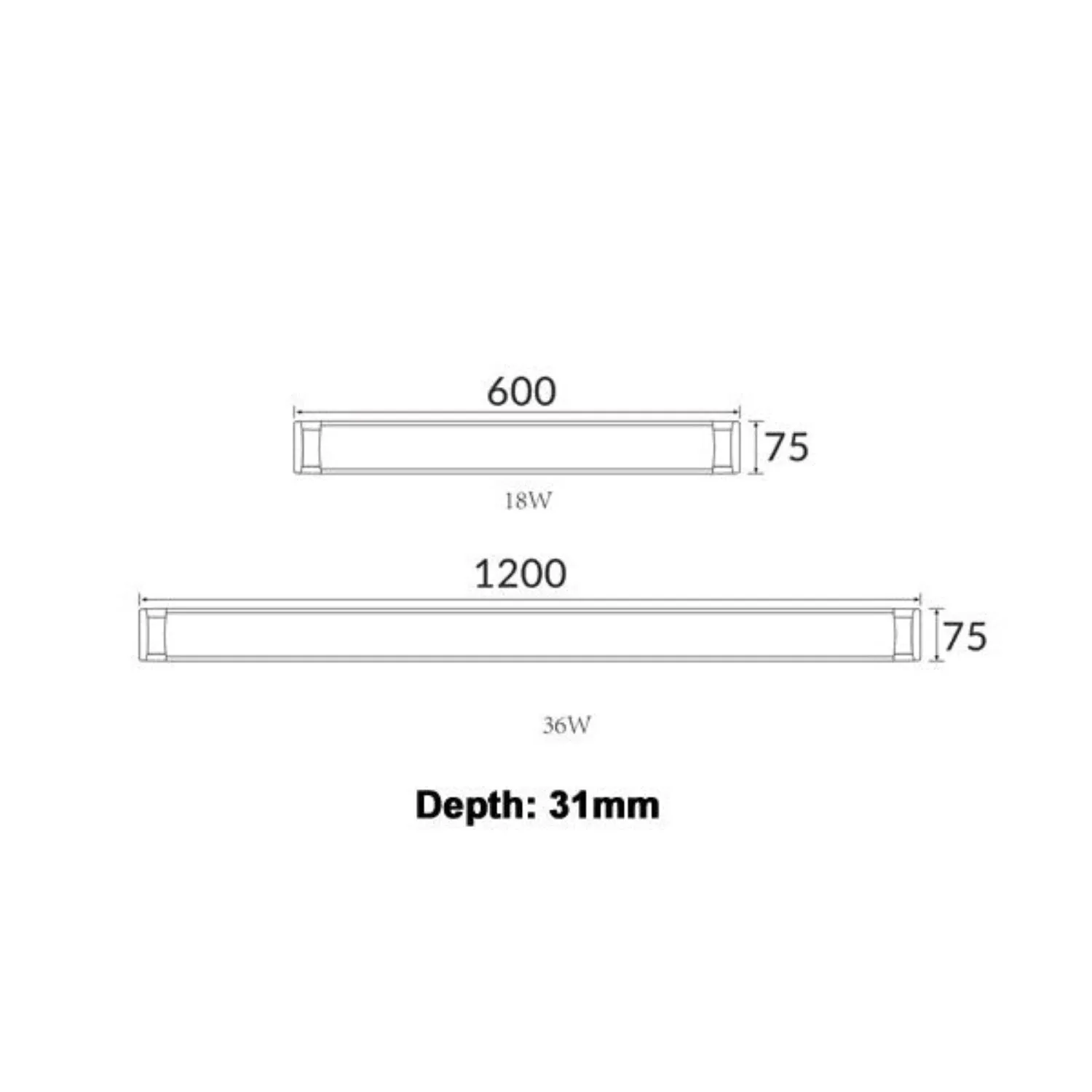

| Part No. | Description | Kelvin(K) | Lumens(LM) | Watt | CRI | Beam | Dimm | Length(mm) | Width(mm) | Depth(mm) | |
| RAZORDM001A | BATTEN LED S/M WH DIMM Central Hole 1500Lm CCT 18W 110D 600mmx75mm | 3000/ 4000/ 5000 | 1500/ 1700/ 1500 | 18 | >80 | 110 | Yes | 600 | 75 | 31 | |
| RAZORDM002A | BATTEN LED S/M WH DIMM Central Hole 3000Lm 36W 110D 1200mmx75mm | 3000/ 4000/ 5000 | 3000/ 3400/ 3000 | 36 | >80 | 110 | Yes | 1200 | 75 | 31 |
Tested & Recommended Dimmers:
- Diginet – LEDSmart: MMDM/BP, MMDM/RT
- Clipsal – Universal: 32ELEDM, 32E450UDM, 32E450TM
- HPM – CAT400L, CAT400T
Please check with a licenced electrician for Min and Max dimmer load.
