Product Details
＋

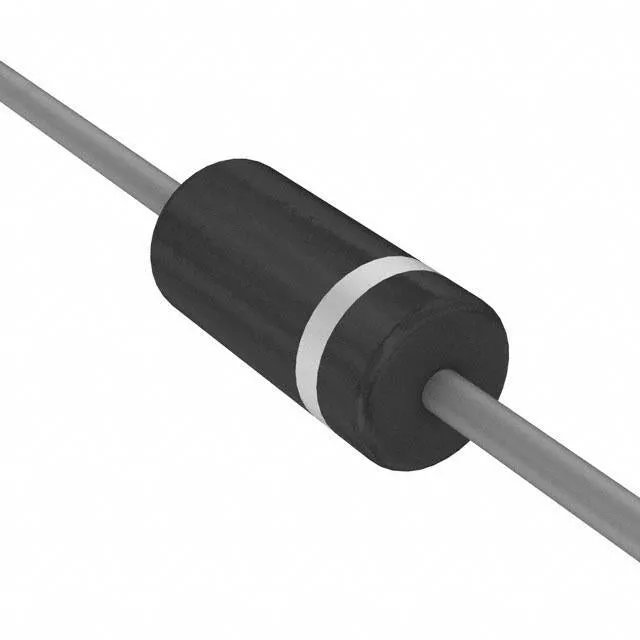

P6KE120CA, Transient Voltage Supressions Diode (TVS), 120V 3.6 Amp Bidirectional DO-15 package
- 600W Absorption Rating
- Industry Standard DO-15 Package
- 114-126V Rating
- 100 Amp Peak Current Capability
- PCB Mount
APPLICATION AREAS:
1.Used in sensitive electronics for protection against voltage transients indused by inductive load swithcing and lighting on IC's Mosfets, signal lines of sensors units for consumer, industrial, automotive, and telecommunications
Specification
| Part Number | P6KE120CA |
| Direction/Polar | Bidirectional |
| Operating Voltage AC (50-60Hz) | 120V |
| Operating Voltage DC | 120V |
| Average Power Dissipation | 5W |
| Permissable Peak Current | 100A |
| Energy Absorption(2ms) | 600W(max) |
| Tolerance(Vn) | /- 10% |
| Termination Style | Axial Lead |
| Weight | 1g |
| Factory Pack Qty | 1 |
