Product Details
＋

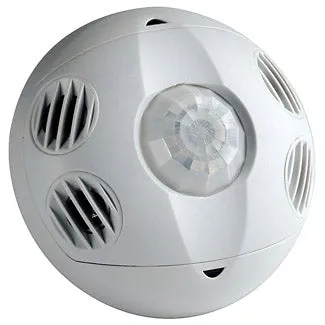

Occupancy Sensor, Ceiling Mounted, Multi-technology, 24VDC, 35mA power consumption, 1000 sq ft, 360 degree (major motion: PIR: 40' diameter; U/S: 46'Lx23'W, minor motion: U/S: 34'Lx17'W), red LED=PIR, green LED-U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM/ANCE listed, CEC Title 24 compliant Color: off-white.
The most advanced sensor available. Combines multi-technology with all-digital architecture. Eliminates false triggering. The result is a trouble-free, install and forget solution for lighting control.
Product Features
Coverage (Sq.Ft.): 1000
Color: White
Product Line: OSC10
Technology: Multi-Technology PIR/Ultrasonic
Sensor Type: Ceiling Mount
Standards and Certifications
Title 24 Compliant: Yes
Electrical Specifications
Voltage: 24 VDC
Material Specifications
Color: White
Mechanical Specifications
Coverage (Sq.Ft.): 1000
Product Features
Color: White
Coverage (Sq.Ft.): 1000
