Product Details
＋
Features
- Safe design with input and output electrical isolation.
- Adoption of advanced SPWM technology, pure sine wave output.
- Optional output voltage 220/230VAC, choosing by DIP switch.
- LED indicators for fault status and working status.
- Lower No-load consumption.
- Max. efficiency up to 95%.
- Input protection: Over voltage protection, low voltage protection.
- Output protection: Overload protection, short circuit protection.
- Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when overheating.
Technical Specification

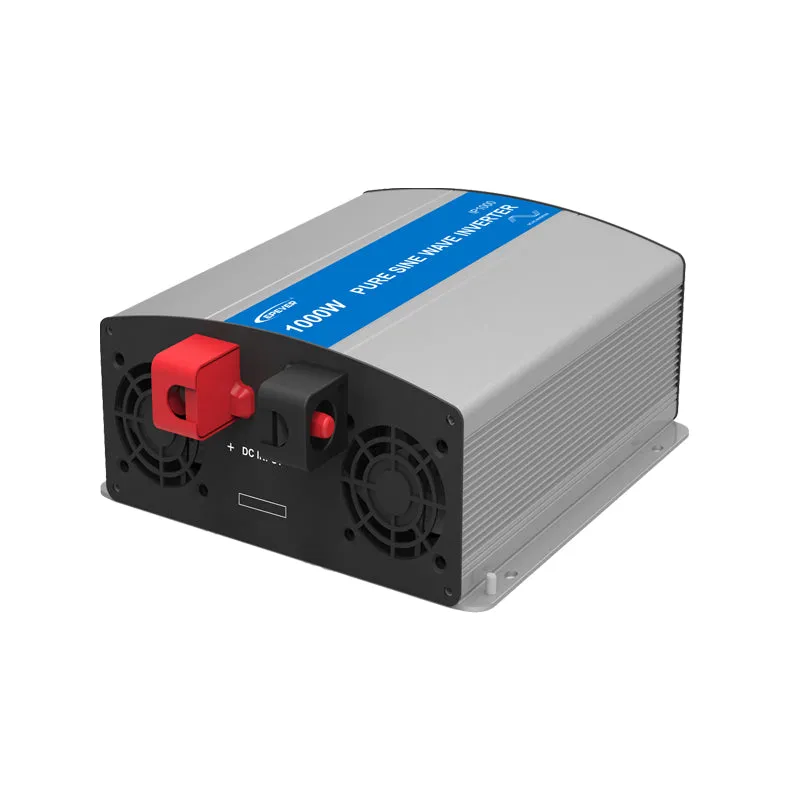

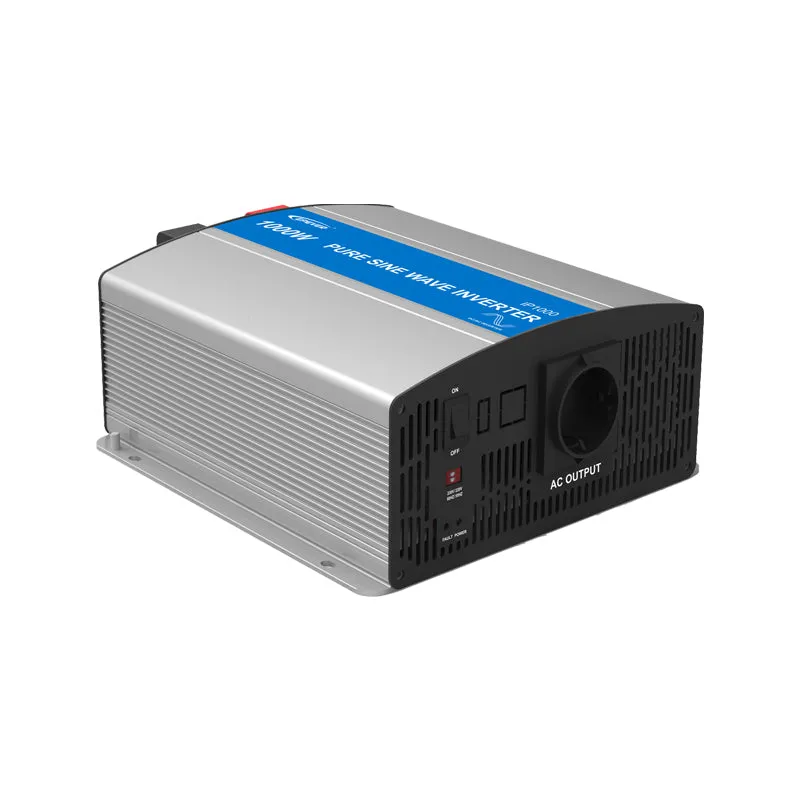

- Model: IP1000-22.
- Rated Input Voltage: 24VDC.
- Input Voltage Range: 21.6 to 32VDC.
- Input surge voltage: ＜40VDC.
- Output Voltage: 220VAC (± 5%), 230VAC (-10% ~ 5%).
- Output Frequency: 50/60±0.1Hz
- Output Continuous Power: 800W.
- Power Factor: 0.2-1(VA lower than output continuous power).
- Output Wave: Pure sine wave.
- Overall dimension: 284.7mm × 231.5mm × 98.5mm.
- Net weight: 3.9 kg.
