EYEPIECE(S)
Pair of secured WF10x/20 mm eyepieces supplied with eyecups
HEAD
• Binocular head with 45° inclined tube
• Diopter adjustment of ± 5 on one side
• Interpupillary distance adjustable between 55 and 75 mm

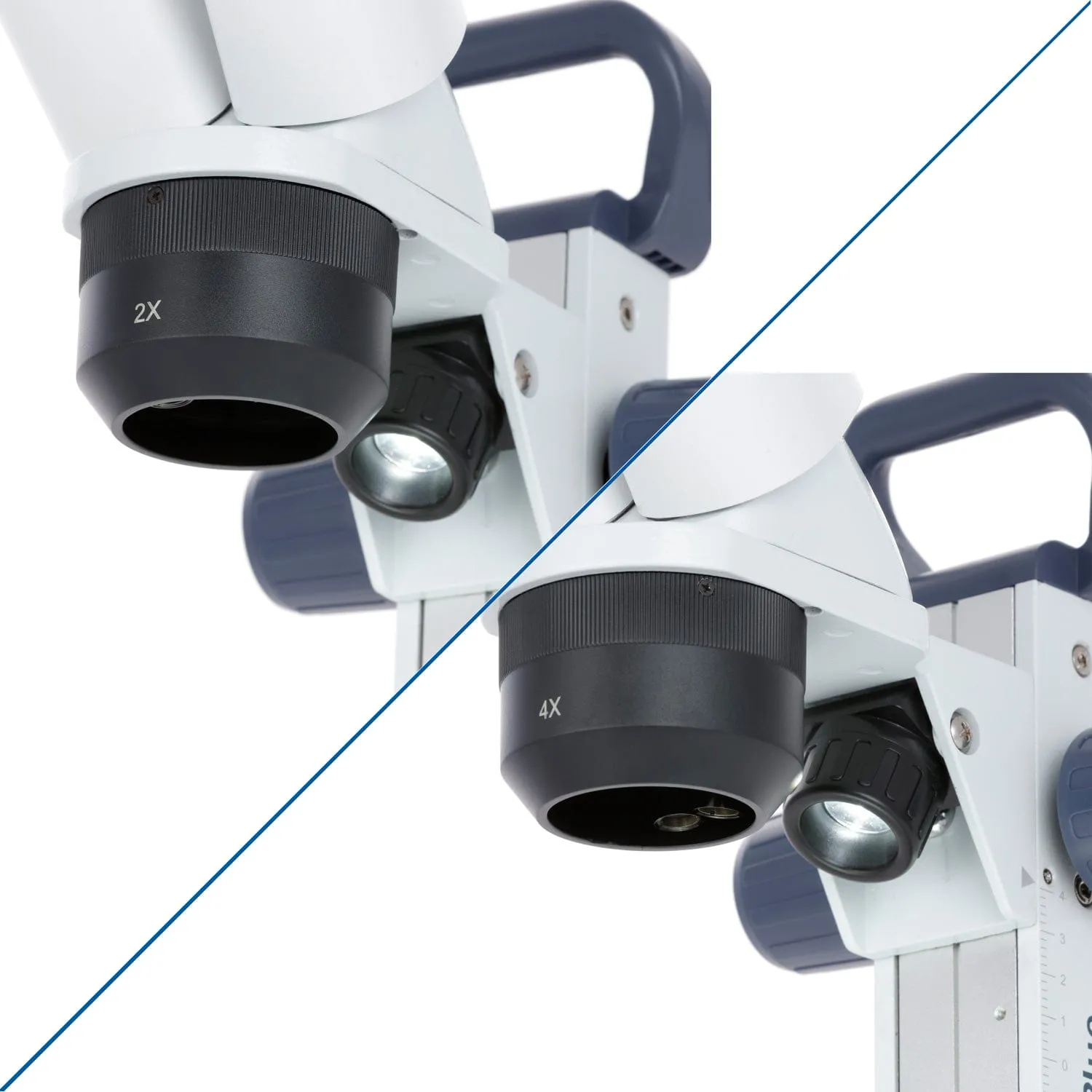

DUAL MAGNIFICATION OBJECTIVES
• Revolving nosepiece with dual 2x/4x , which can provide standard magnifications of 20x and 40x
• Working distance 60 mm
• Field of view of 20/6.7 mm or 10/5 mm
• Magnifications can be altered using optional eyepieces
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
TRIPLE MAGNIFICATION OBJECTIVES
• Revolving nosepiece with triple 2x/4x, which can provide standard magnifications of 20x and 40x.
• Working distance 60 mm
• Field of views of 20/10/6.7 mm or 20/10/5mm
• Magnifications can be altered using optional eyepieces
(Photo: Triple magnification)

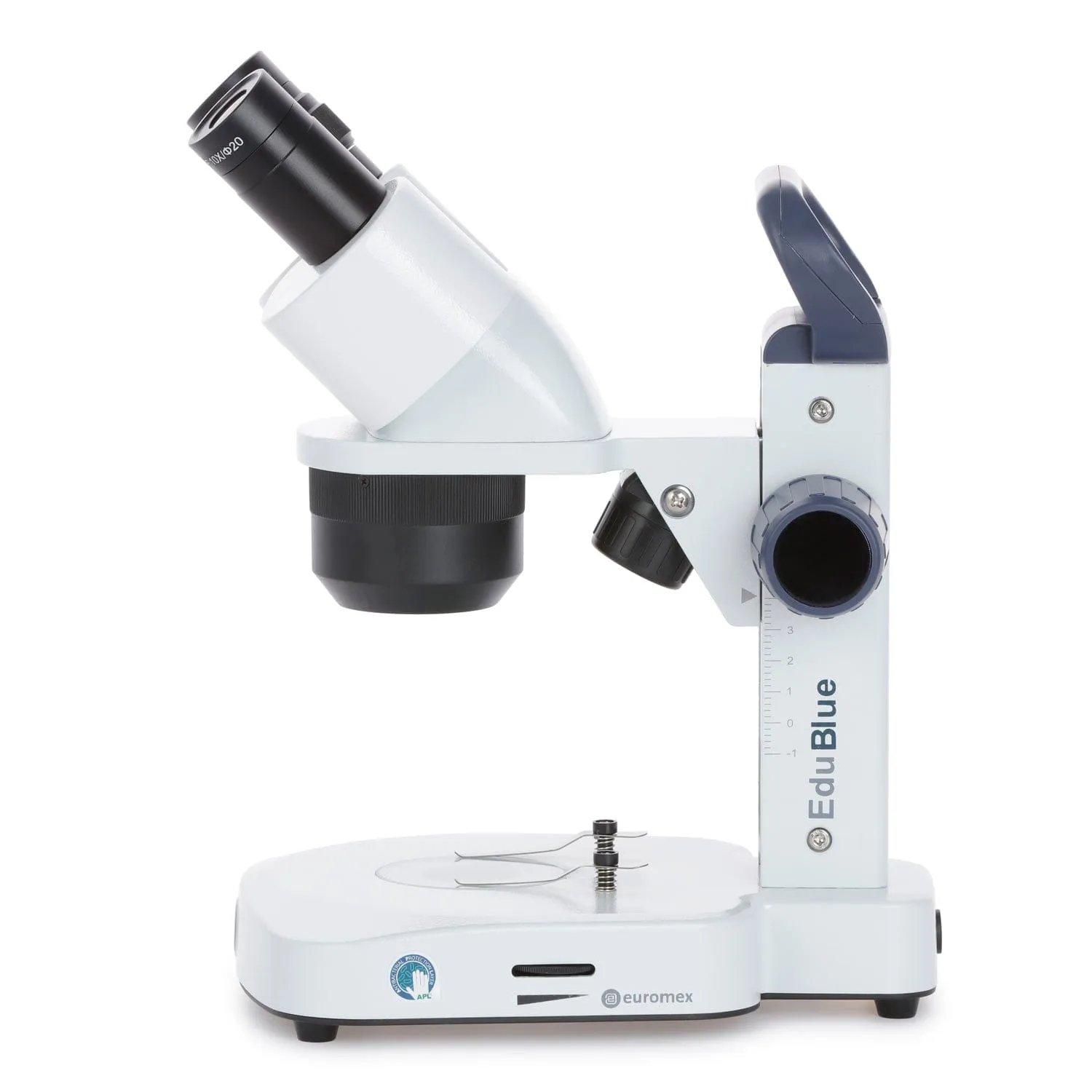

STAND
• The rack & pinion stands of the EduBlue are equipped with ergonomic designed flat bases, complete with 2 object clamps and Ø 60 mm transparent and black/white stage plate
• The coarse adjustment is equipped with tension control
• The stands are alloy metal cast with hardened coating
• The rack & pinion stands of the EduBlue are equipped with graduations and focus point indicators for quick focusing
ILLUMINATION
• The transmitted and incident 1 W LED illuminations can be used simultaneously and the light intensities can be adjusted separately
• 60 mm working distance
PACKAGE CONTENT
• Supplied with an external 100-240 V mains adapter/charger and three rechargeable batteries for corded and cordless use, dust cover, Ø 60 mm transparent and black/white stage plates, eyecups, and user manual
• All packed in a polystyrene box
