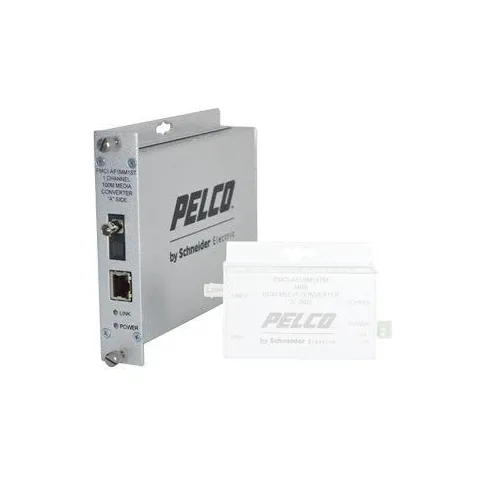

1 Channel Single Mode ST Fiber Media Converter-A FMCI-AF1SM1ST

Also Known As:

1 Channel Media Converter, Single Mode, ST Connector, Fiber Media Converter-A

About:

The FMCI-AF1SM1ST Ethernet Media Converter is specifically designed to transmit and receive 10/100 Mbps data over single-mode optical fiber using ST optical connectors. The electrical interface automatically negotiates between 10 Mbps and 100 Mbps Ethernet rates without requiring manual adjustments, while the optical interface consistently operates at a 100 Mbps Ethernet rate. Engineered for durability, this media converter is environmentally hardened to perform reliably in extreme temperature conditions. It features LED indicators for quick and easy monitoring of operational status and critical parameters. For added versatility, the unit can be DIN-rail mounted with an adapter plate, making it a flexible and robust solution for demanding networking environments.

Features:

• Optical Port Supports 100 Mbps Full-Duplex Data
• Transparent to Data Encoding/Compatible with Major Data Protocols
• ST Optical Connectors
• 1-Fiber Design
• Flexible Option for Operating AC/DC Power

Specifications:

• Product Type: Ethernet Media Converter
• Part Number : FMCI-AF1SM1ST
